Precision Engineering.
Precision Driven.
Formed and assembled with zero compromise.
Every detail exists for one purpose:
a direct connection between pilot and pavement.
This is craft dedicated to a pure drift experience.

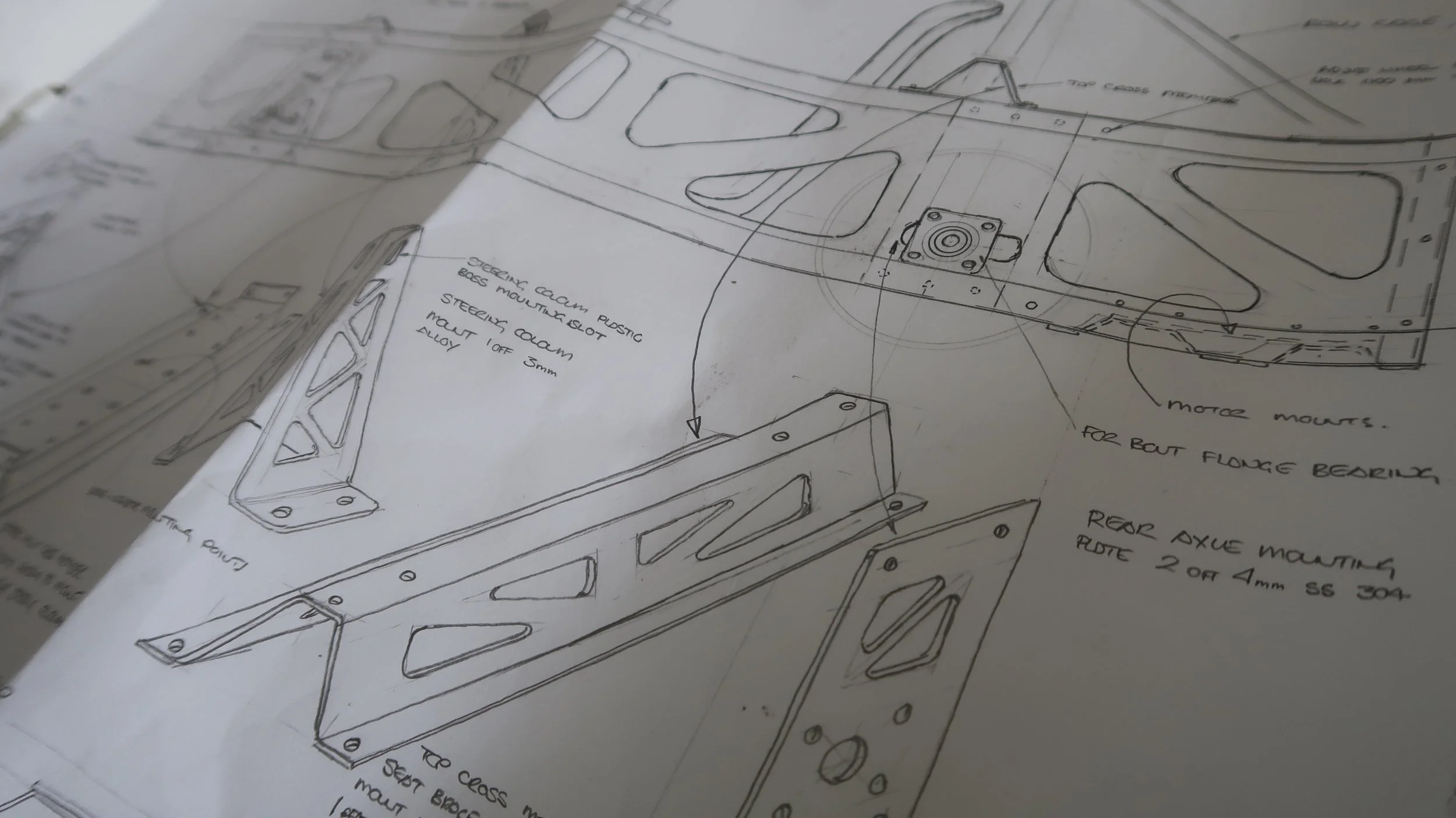

THE CALCULATED ORIGIN.
STRUCTURAL
INTEGRITY.
THE NEXT GENERATION.
POWER UNIT
Engine Type — 212cc 4-Stroke Single-Cylinder
Cooling System — Forced Air-Cooled
Max Output — 5.1 kW @ 3,600 rpm
Max Torque — 11 N·m @ 2,500 rpm
Transmission — Centrifugal Clutch
Top Speed — 55 km/h (Optimized for Drift Dynamics)
STRUCTURE & CHASSIS
Chassis Arch — Laser-Cut Aluminum Semi-Monocoque
Drive Configuration — Rear-Wheel Drive (RWD)
Braking System — Hydraulic Rear Disc Brake
Steering — Rack & Pinion
Body Integrity — Reinforced Cockpit with Impact-Absorbing Crush Zones
DIMENSIONS & WEIGHT
Curb Weight — 110 kg
Wheelbase — 1,130 mm
Footprint — 1,920 mm (L) x 1,140 mm (W) x 610 mm (H)
Tire Specification — Racing Rubber with Rear Nylon Drift Sleeves
DD KART™ | Technical Specifications
NEW ZEALAND ENGINEERING
INQUIRIES
Every DD KART is a bespoke pursuit of authentic drift feedback. Whether for acquisition, partnership, or a custom build, let us begin the conversation.
